system design

2 min read

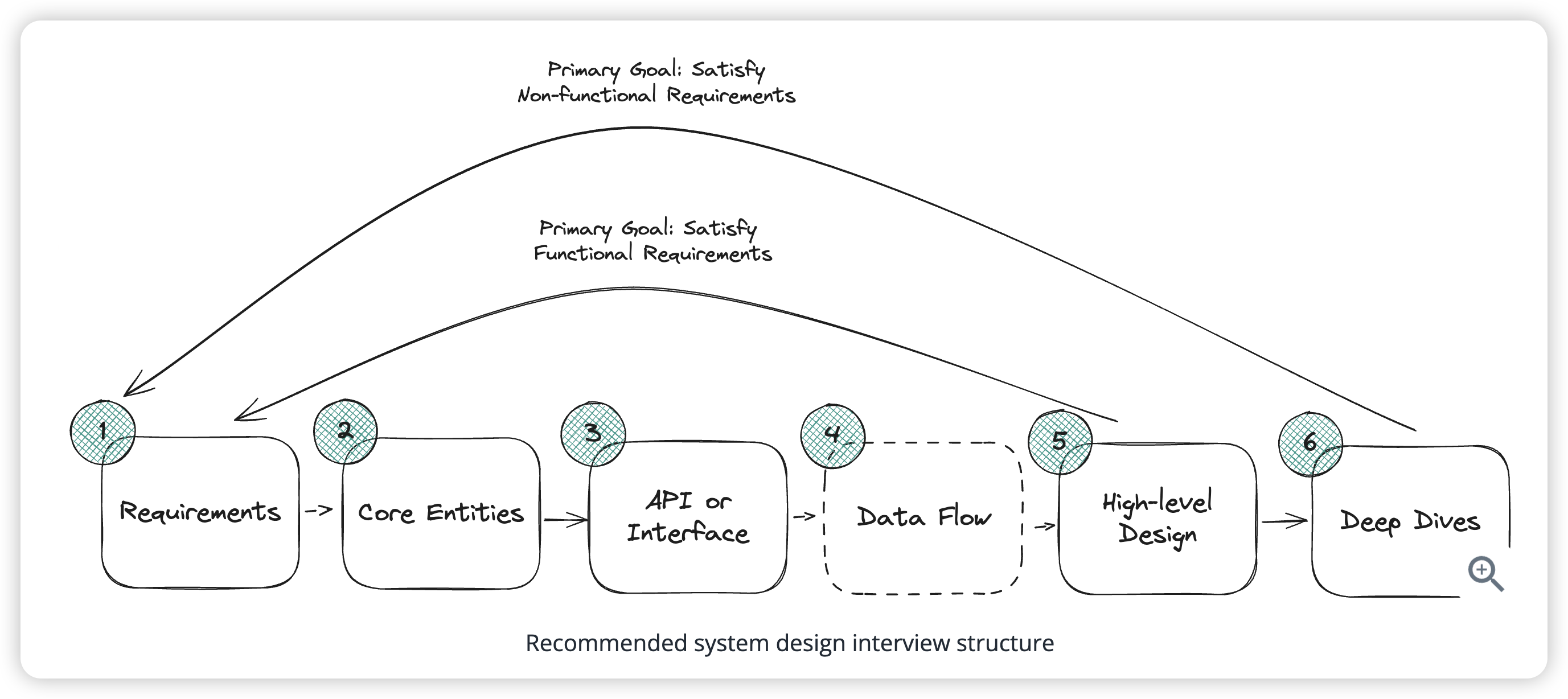

Steps of system design

1. Understand the problem and establish design scope

  • ask clarify questions
  • functional/non-functional requirement
  • QPS estumation

2. High-level design

  • API
  • Database

3. Low-level design (dive into each component)

4. Summary

  • bottlenecks
  • single point of failure
  • replicas of the data if lost
  • monitoring/alaert
  • auto-fix/ticket

Microservice main point

Technical Explanation

At a high level, microservices work by:

  1. Service Independence: Each service runs as its own process and can be deployed independently
  2. API Communication: Services communicate with each other through well-defined APIs, typically REST or gRPC
  3. Database Isolation: Each service typically manages its own database, preventing direct database coupling
  4. Independent Scaling: Services can be scaled independently based on their specific load requirements

In an interview, you should also be able to explain:

  • Service Discovery: How services find and communicate with each other
  • Data Consistency: How to maintain data consistency across services
  • Fault Isolation: How failures in one service are contained and don’t cascade to others

Common non-functional requirement

  • Performance: How fast does the system need to respond to user actions or process requests? This often includes defining acceptable latency thresholds for key operations like loading a user’s feed or posting a tweet.
  • Availability: How consistently should the system be accessible to users? This could mean ensuring near 100% uptime through redundancy, failover mechanisms, and proactive monitoring.
  • Scalability: Can the system handle increasing numbers of users, data, or traffic without a degradation in performance? Scalability can be both vertical (upgrading resources on a single server) and horizontal (adding more servers or instances). For large-scale systems, horizontal scalability is often preferred.
  • Reliability: How well does the system handle failures? This includes designing for fault tolerance so that the system can recover from crashes or unexpected errors without losing functionality or data.
  • Consistency: How accurately does the system reflect the same data across all users and operations? In systems with distributed databases, maintaining strong consistency can be challenging but critical for certain operations.
  • Durability: How safely is data stored? This involves ensuring that data, once written, isn’t lost due to hardware failures, power outages, or other disruptions.
  • Security: How well does the system protect against unauthorized access or attacks? This includes safeguarding sensitive user data and preventing exploits such as SQL injection or distributed denial-of-service (DDoS) attacks.

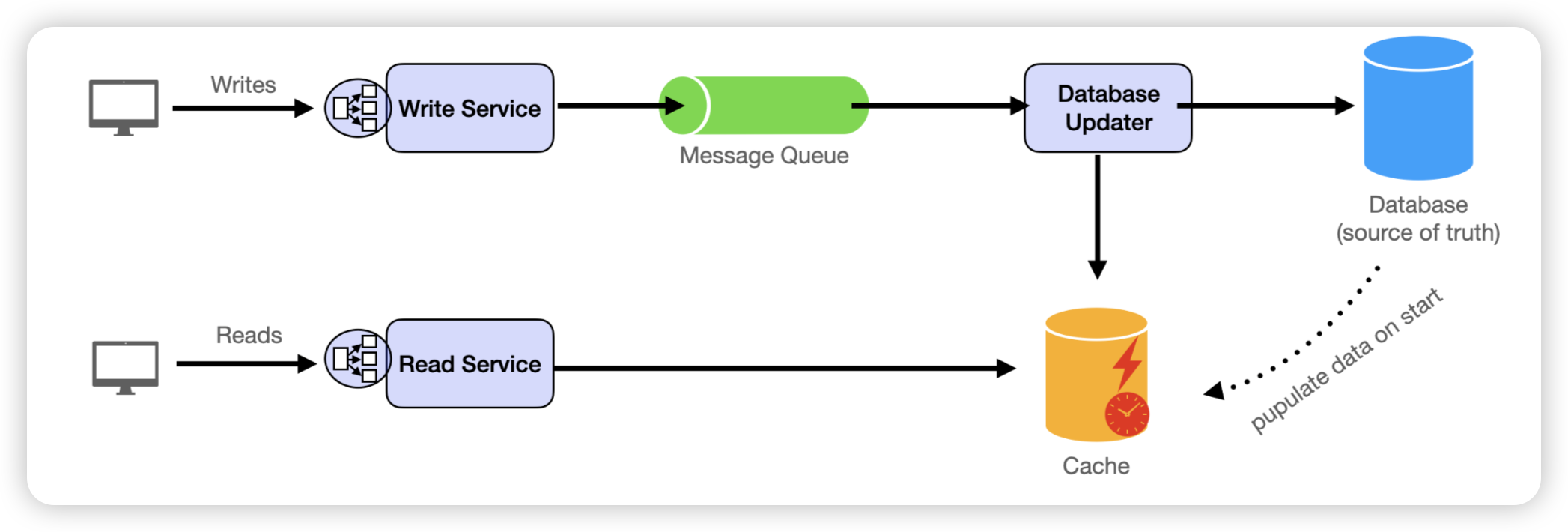

Common template
